Battery
Office equipment desktop or tablet PC,printer, surveillance camera, ete; Household: TV sets, fans, rice cookers, lights and other appliances; GPS, DVD, audio and other equipment; Outdoors: field camping, vehicle power, emergency relief, business promotion, night market stall and so on.
Keywords: solar household system, solar energy system, solar micro-grid power station
Feature
3 times peak power, excellent loading capability.。Combine inverter/solar controller/battery all in one.
Multiple output: 2*AC output socket,4*DC 12V,2*USB.。Working mode AC prior/ECO mode/Solar prior selectable.AC charging current O-10A selectable.
LVD/HVD/Charging voltage adjutable, suitable for kinds of battery
Adding fault code to monitor real-time work situations.
Continuous stable pure sine wave output with inbuilt AVR stabilizer.
Digital LCD and LED for visualization of operation status of the equipment.。Inbuilt automatic AC charger and AC mains switcher, stwitch time≤4ms.
Application Area
Office equipment desktop or tablet PC,printer, surveillance camera, ete;
Household: TV sets, fans, rice cookers, lights and other appliances; GPS, DVD, audio and other equipment;
Outdoors: field camping, vehicle power, emergency relief, business promotion, night market stall and so on.

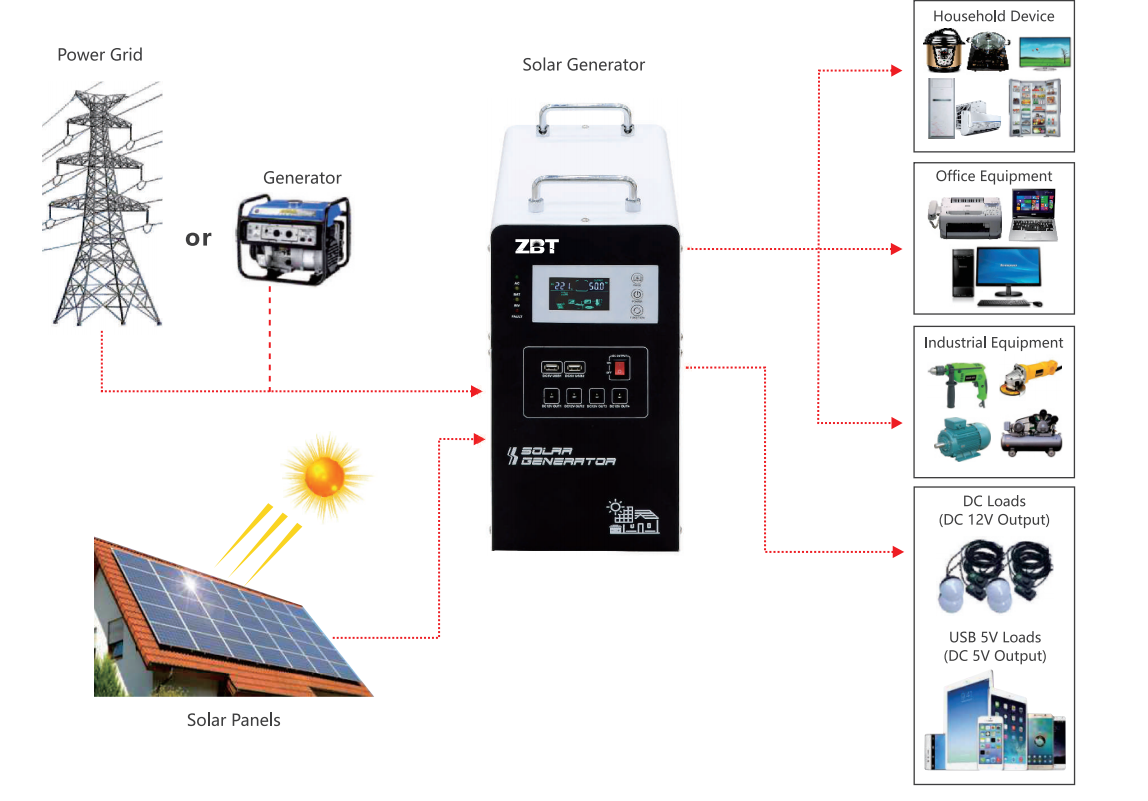

System Application Diagram
Technical Parameters
| Model: ZBT-ESS | 301P | 501P/W | 102P | 152P/W | 202P/W | 302P/W | 152P8/W8 | 202P8/W8 | 302P8/W8 | 402P/W | 502P/W | 602P/W | 702P/W | |
| Capacity | Rated power | 300W | 500W | 1000W | 1500W | 2000W | 3000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | 7000W |
| Peak power (20ms) | 900VA | 1500VA | 3000VA | 4500VA | 6000VA | 9000VA | 4500VA | 6000VA | 9000VA | 12KVA | 15KVA | 18KVA | 21KVA | |
| Input | Stardard battery voltage | 12VDC | 24VDC | 48VDC | ||||||||||
| AC input voltage range | 73~138VAC(110VAC)/83~148VAC (120VAC)/145~275VAC(220VAC)/ 155~285VAC(230VAC)/ 165~295VAC(240VAC) |
85VAC~138VAC(110VAC)/95VAC~148VAC(120VAC)/170VAC~275VAC(220VAC)/ 180VAC~285VAC(230VAC)/ 190VAC~295VAC(240VAC) |
||||||||||||
| AC input frequency range | 45Hz~55Hz (50Hz);55Hz~65Hz (60Hz) | |||||||||||||
| Output | Conversion efficiency | ≥85%(Battery mode);>99%(AC mode) | ||||||||||||
| AC Output voltage | 110VAC±2%/120VAC±2%/220VAC±2%/230VAC±2%/240VAC±2%(Battery 110VAC±10%/120VAC±10%/220VAC±10%/230VAC±10%/240VAC±10%(AC |
mode); mode) |
||||||||||||
| AC Output frequency | 50/60Hz±1%(Battery mode); Tracking Automatically(AC mode) | |||||||||||||
| AC Output waveform | Pure Sine Wave | |||||||||||||
| THD | ≤3%(Linear load) | |||||||||||||
| DC Output voltage | 4*DC12V;2*USB(5V) | 4*DC12V;4*USB(5V) | ||||||||||||
| AC charger |
AC charging current | 0~30A(Depends on model) | ||||||||||||
| AC charging method | Three-stage(constant current, constant voltage, floating charge) | |||||||||||||
| solar charger (Optional) |
Charging mode | PWM | PWM/MPPT | |||||||||||
| Max PV Input Voltage(Voc) (At the lowest temperature) |
50v | PWM:50V; MPPT:150V | PWM:100V;MPPT:150V | |||||||||||
| PV input voltage range | 15V~44V | PWM:30V~44V;MPPT:30V~120V | PWM:60V-88V; MPPT:60V-120V | |||||||||||
| Charge & discharge current | 20A | 40A | 60A | |||||||||||
| Max PV input power | 280W | 560W | 1680W | 3360W | ||||||||||
| Inbuilt battery |
Capacity | 1*50AH | 1*100AH | 2*200AH | 4*200AH | |||||||||
| Battery size(LxWxH)/pcs | 229*138*210(228) | 407*174 *210(240) |
522*240*218(244) | |||||||||||
| Other | Transfer time | ≤4ms | ||||||||||||
| Protection | With over-voltage, low-voltage, overload, short circuit, high tempreature protections | |||||||||||||
| Display | LCD & LED | |||||||||||||
| Cooling way | Cooling fan in intelligent control | |||||||||||||
| Communication(Optional) | RS485/APP(WIFI monitoring or GPRS monitoring)(Models below 1000W (including 1000W) are not supported) | |||||||||||||
| Working mode (selectable) |
d1 | AC priority mode | ||||||||||||
| d2 | ECO mode | |||||||||||||
| d3 | Solar priority mode | |||||||||||||
| Work environment |
Operating temperature | -10℃~40℃ | ||||||||||||
| Storage temperature | -15℃~60℃ | |||||||||||||
| Elevation | 2000m(More than derating) | |||||||||||||
| Humidity | 0%~95%,No condensation | |||||||||||||
| Physical | Dimention Lx WxH(mm) | 358*192*390 | 488*232 *450 |
560*350*928 | 610*535*960 | |||||||||
| Net weight(kg) (without battery) |
8 | 10 | 16 | 37 | 39 | 43 | 53 | 55 | 59 | 61 | 63 | 64 | 66 | |
| Packing | Dimention LxWxH(mm) | 400*252*500 | 550*295 *625 |
638*427*1063 | 688*612*1093 | |||||||||
| Gross weight(kg) (without battery) |
11 | 13 | 21 | 47 | 49 | 53 | 68 | 70 | 74 | 76 | 78 | 79 | ||
| Quantity/CTN | 81 1pcs per wooden case |
|||||||||||||
| Note: 1.All specifications are subject to charge without prior notice. | ||||||||||||||
