210 single crystal laminated tile high-efficiency module Stable output of 50V DC voltage; High conversion rate and high efficiency output; Excellent weak light effect; Adopting high-quality tempered glass with high transmittance; The unique process makes the components beautiful, sturdy, and resistant to wind and snow, making installation convenient; Unique technology to prevent water accumulation, freezing, and deformation within the framework; Can be specially designed according to customer needs and packaged separately; 25 year output power guarantee;
Keywords: solar household system, solar energy system, solar micro-grid power station
210 single crystal laminated tile high-efficiency module
Stable output of 50V DC voltage;
High conversion rate and high efficiency output;
Excellent weak light effect;
Adopting high-quality tempered glass with high transmittance;
The unique process makes the components beautiful, sturdy, and resistant to wind and snow, making installation convenient;
Unique technology to prevent water accumulation, freezing, and deformation within the framework;
Can be specially designed according to customer needs and packaged separately;
25 year output power guarantee;
Radiance 1000W/m²
Component temperature 25°C
AM=1.5
SPECIFICATION
| Battery | Single crystal (33.2mm) 31.8mm * 166 |
| Number and arrangement of cells | 444(74*6) |

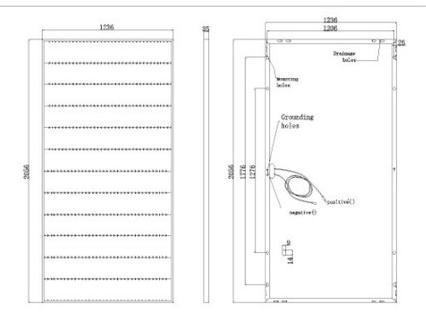

| Module Size | 2056*1236*35mm |
| Weight | 26.30kg |
| Maximum Power(Pmax) | 500W | 505W | 510W | 515W | 520W |
| Output Power Tolerance | +0~5W | ||||
|
Best Working Current(Imp) Best Working Voltage(Vmp) |
12.136A 41.20V |
12.242A 41.25V |
12.319A 41.40V |
12.404A 41.520V |
12.502A 41.637V |
| Open circuit voltage(Voc) | 50.20V | 50.22V | 50.42V | 50.42V | 50.833V |
| Short circuit current (Isc) | 12.626A | 12.753A | 12.879A | 13.005A | 13.137A |
|
Temperature coefficient of short-circuit current Open Circuit Voltage TCR |
(0.065±0.015)%/°C - (80±10)mV/°C |
||||
| Peak Power TCR | - (0.5±0.05)%/°C | ||||
| NOCT | 47±2°C | ||||
| Operating Temperature | -40℃ to85℃ | ||||
| Maximum System Voltage | 1500VDC |
