Solar modules
210 single crystal laminated tile high-efficiency module 40V DC voltage stable output; High conversion rate and high efficiency output; Excellent low light effect; Adoption of high quality tempered glass with high transmittance; Unique technology to make the components beautiful and sturdy resistance to wind and snow, easy to install; Unique technology to avoid freezing and deformation of water accumulated in the frame; Can be specially designed and individually packaged according to customer requirements; 25-year output power guarantee;
Keywords: solar household system, solar energy system, solar micro-grid power station
210 single crystal laminated tile high-efficiency module
40V DC voltage stable output;
High conversion rate and high efficiency output;
Excellent low light effect;
Adoption of high quality tempered glass with high transmittance;
Unique technology to make the components beautiful and sturdy resistance to wind and snow, easy to install;
Unique technology to avoid freezing and deformation of water accumulated in the frame;
Can be specially designed and individually packaged according to customer requirements;
25-year output power guarantee;
Radiance 1000W/m²
Component temperature 25°C
AM=1.5
SPECIFICATION
| Battery | Monocrystalline 210*30mm cells |
| Number and arrangement of cells | 350(35×10) |

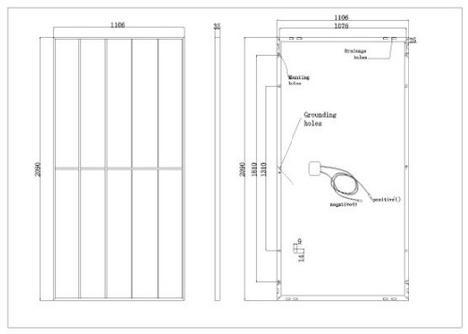

| Module Size | 2090*1106*35mm |
| Weight | 23.90kg |
| Maximum Power(Pmax) | 460W | 465W | |
| Output Power Tolerance | +0~5W | ||
|
Best Working Current(Imp) Best Working Voltage(Vmp) |
11.80A 38.98V |
11.920A 39.02V |
12.021A 29.18V |
| Open circuit voltage(Voc) | 47.32V | 47.40V | 47.554V |
| Short circuit current (Isc) | 12.366A | 12.50A | 12.641A |
|
Temperature coefficient of short-circuit current Open Circuit Voltage TCR |
(0.065±0.015)%/°C - (80±10)mV/°C |
||
| Peak Power TCR | - (0.5±0.05)%/°C | ||
| NOCT | 47±2°C | ||
| Operating Temperature | 40°C to 85°C | ||
| Maximum System Voltage | 1500VDC |
