Solar modules
60 high-efficiency polycrystalline modules Stable output of 30V DC voltage; High conversion rate and high efficiency output; Excellent weak light effect; Adopting high-quality tempered glass with high transmittance; The unique process makes the components beautiful, sturdy, and resistant to wind and snow, making installation convenient; Unique technology to prevent water accumulation, freezing, and deformation within the framework; Can be specially designed according to customer needs and packaged separately; 25 year output power guarantee;
Keywords: solar household system, solar energy system, solar micro-grid power station
60 high-efficiency polycrystalline modules
Stable output of 30V DC voltage;
High conversion rate and high efficiency output;
Excellent weak light effect;
Adopting high-quality tempered glass with high transmittance;
The unique process makes the components beautiful, sturdy, and resistant to wind and snow, making installation convenient;
Unique technology to prevent water accumulation, freezing, and deformation within the framework;
Can be specially designed according to customer needs and packaged separately;
25 year output power guarantee;
Radiance 1000W/m²
Component temperature 25°C
AM=1.5
SPECIFICATION
| Battery | Single crystal 156 * 156mm (158 * 158mm) |
| Number and arrangement of cells | 60(6×10) |

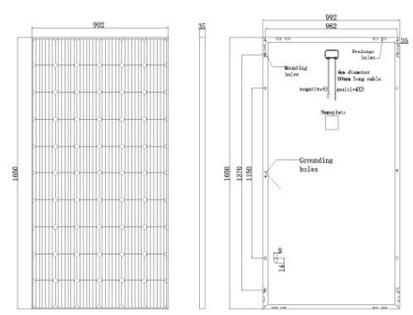

| Module Size | 1650mm×992mm×35mm |
| Weight | 18.4kg |
| Maximum Power(Pmax) | 300W | 305W | 310W | 315W | 320W | ||
| Output Power Tolerance | +0~5W | ||||||
|
Best Working Current(Imp) Best Working Voltage(Vmp) |
9.43A 31.8V |
9.53A 32V |
9.57A 32.4V |
9.69A 32.5V |
9.79A 32.7V |
9.88A 32.9V |
10.02A 32.94V |
| Open circuit voltage(Voc) | 40.1V | 40.2V | 40.2V | 40.3V | 40.5V | 40.6V | 40.6V |
| Short circuit current (Isc) | 9.62A | 9.78A | 9.94A | 10.09A | 10.26A | 10.42A | 10.43A |
|
Temperature coefficient of short-circuit current Open Circuit Voltage TCR |
(0.065±0.015)%/°C - (80±10)mV/°C |
||||||
| Peak Power TCR | - (0.5±0.05)%/°C | ||||||
| NOCT | 47±2°C | ||||||
| Operating Temperature | -40℃ to85℃ | ||||||
| Maximum System Voltage | 1500VDC |
