Solar modules
60 high-efficiency polycrystalline modules Stable output of 30V DC voltage; High conversion rate and high efficiency output; Excellent weak light effect; Adopting high-quality tempered glass with high transmittance; The unique process makes the components beautiful, sturdy, and resistant to wind and snow, making installation convenient; Unique technology to prevent water accumulation, freezing, and deformation within the framework; Can be specially designed according to customer needs and packaged separately; 25 year output power guarantee;
Keywords: solar household system, solar energy system, solar micro-grid power station
60 high-efficiency polycrystalline modules
Stable output of 30V DC voltage;
High conversion rate and high efficiency output;
Excellent weak light effect;
Adopting high-quality tempered glass with high transmittance;
The unique process makes the components beautiful, sturdy, and resistant to wind and snow, making installation convenient;
Unique technology to prevent water accumulation, freezing, and deformation within the framework;
Can be specially designed according to customer needs and packaged separately;
25 year output power guarantee;
Radiance 1000W/m²
Component temperature 25°C
AM=1.5
SPECIFICATION
| Battery | Polycrystalline 156 * 156mm (158 * 158mm) |
| Number and arrangement of cells | 60(6×10) |

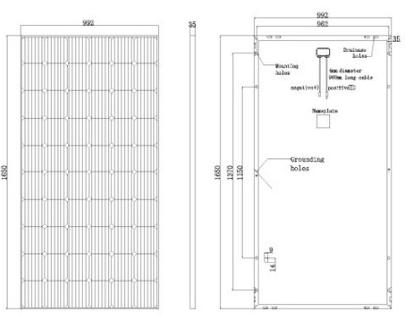

| Module Size | 1650mm×992mm×35mm |
| Weight | 18.4kg |
| Maximum Power(Pmax) | 265W | 270W | 275W | 280W | 285W | 290W |
| Output Power Tolerance | +0~5W | |||||
|
Best Working Current(Imp) Best Working Voltage(Vmp) |
8.49A 31.10V |
8.65A 31.10V |
8.80A 31.24V |
8.98A 31.18V |
9.13A 31.20V |
9.23A 31.40V |
| Open circuit voltage(Voc) | 39.0V | 39.20V | 39.40V | 39.54V | 39.60V | 39.60V |
| Short circuit current (Isc) | 8.49A | 8.65A | 8.81A | 8.97A | 9.19A | 9.29A |
|
Temperature coefficient of short-circuit current Open Circuit Voltage TCR |
(0.065±0.015)%/°C - (80±10)mV/°C |
|||||
| Peak Power TCR | - (0.5±0.05)%/°C | |||||
| NOCT | 47±2°C | |||||
| Operating Temperature | -40℃ to85℃ | |||||
| Maximum System Voltage | 1500VDC |
