Solar modules
72 high-efficiency single crystal modules Stable output of 36V DC voltage; High conversion rate and high efficiency output; Excellent weak light effect; Adopting high-quality tempered glass with high transmittance; The unique process makes the components beautiful, sturdy, and resistant to wind and snow, making installation convenient; Unique technology to prevent water accumulation, freezing, and deformation within the framework; Can be specially designed according to customer needs and packaged separately; 25 year output power guarantee;
Keywords: solar household system, solar energy system, solar micro-grid power station
72 high-efficiency single crystal modules
Stable output of 36V DC voltage;
High conversion rate and high efficiency output;
Excellent weak light effect;
Adopting high-quality tempered glass with high transmittance;
The unique process makes the components beautiful, sturdy, and resistant to wind and snow, making installation convenient;
Unique technology to prevent water accumulation, freezing, and deformation within the framework;
Can be specially designed according to customer needs and packaged separately;
25 year output power guarantee;
Radiance 1000W/m²
Component temperature 25°C
AM=1.5
SPECIFICATION
| Battery | Single crystal 166 * 166mm battery cell |
| Number and arrangement of cells | 72(6×12) |

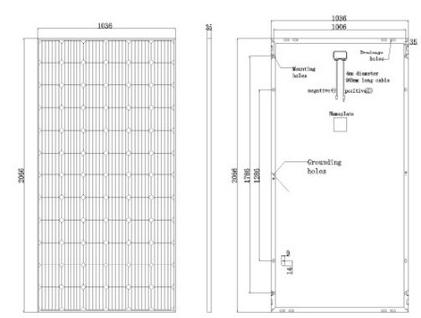

| Module Size | 2066mm×1036mm×35mm |
| Weight | 21.6kg |
| Maximum Power(Pmax) | 400W | 405W | 410W | 415W | 420W | ||
| Output Power Tolerance | +0~5W | ||||||
|
Best Working Current(Imp) Best Working Voltage(Vmp) |
10.00A 40.02V |
10.10A 40.10V |
10.405A 40.43V |
10.19A 40.72V |
10.31A 40.72V |
10.432A 40.74V |
10.55A 40.75V |
| Open circuit voltage(Voc) | 48.20V | 48.60V | 48.62V | 48.72V | 48.72V | 48.73V | 48.74V |
| Short circuit current (Isc) | 10.65A | 10.70A | 10.894A | 10.66A | 10.82A | 10.86A | 10.92A |
|
Temperature coefficient of short-circuit current Open Circuit Voltage TCR |
(0.065±0.015)%/°C - (80±10)mV/°C |
||||||
| Peak Power TCR | - (0.5±0.05)%/°C | ||||||
| NOCT | 47±2°C | ||||||
| Operating Temperature | -40℃ to85℃ | ||||||
| Maximum System Voltage | 1500VDC |
