Solar modules
60 high-efficiency single crystal modules Stable output of 30V DC voltage; High conversion rate and high efficiency output; Excellent weak light effect; Adopting high-quality tempered glass with high transmittance; The unique process makes the components beautiful, sturdy, and resistant to wind and snow, making installation convenient; Unique technology to prevent water accumulation, freezing, and deformation within the framework; Can be specially designed according to customer needs and packaged separately; 25 year output power guarantee;
Keywords: solar household system, solar energy system, solar micro-grid power station
60 high-efficiency single crystal modules
Stable output of 30V DC voltage;
High conversion rate and high efficiency output;
Excellent weak light effect;
Adopting high-quality tempered glass with high transmittance;
The unique process makes the components beautiful, sturdy, and resistant to wind and snow, making installation convenient;
Unique technology to prevent water accumulation, freezing, and deformation within the framework;
Can be specially designed according to customer needs and packaged separately;
25 year output power guarantee;
Radiance 1000W/m²
Component temperature 25°C
AM=1.5
SPECIFICATION
| Battery | Single crystal 166 * 166mm battery cell |
| Number and arrangement of cells | 60(6×10) |

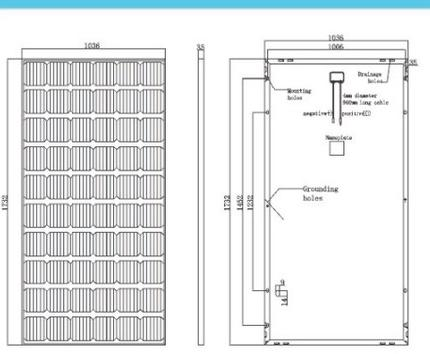

| Module Size | 1732mm×1036mm×35mm |
| Weight | 19.6kg |
| Maximum Power(Pmax) | 330W | 335W | 340W | 345W | 350W | ||
| Output Power Tolerance | +0~5W | ||||||
|
Best Working Current(Imp) Best Working Voltage(Vmp) |
9.806A 33.65V |
9.47A 33.68V |
10.09A 33.70V |
10.23A 33.72V |
10.38A 33.73V |
10.52A 33.74V |
10.67A 33.75V |
| Open circuit voltage(Voc) | 40.7V | 40.8V | 41.0V | 41.04V | 41.08V | 41.08V | 41.12V |
| Short circuit current (Isc) | 10.345A | 10.50A | 10.66A | 10.784A | 10.97A | 11.13A | 11.285A |
|
Temperature coefficient of short-circuit current Open Circuit Voltage TCR |
(0.065±0.015)%/°C - (80±10)mV/°C |
||||||
| Peak Power TCR | - (0.5±0.05)%/°C | ||||||
| NOCT | 47±2°C | ||||||
| Operating Temperature | -40℃ to85℃ | ||||||
| Maximum System Voltage | 1500VDC |
