Solar modules
210 single crystal high-efficiency module 40V DC voltage stable output; High conversion rate and high efficiency output; Excellent low light effect; Adoption of high quality tempered glass with high transmittance; Unique technology to make the components beautiful and sturdy resistance to wind and snow, easy to install; Unique technology to avoid freezing and deformation of water accumulated in the frame; Can be specially designed and individually packaged according to customer requirements 25-year output power guarantee;
Keywords: solar household system, solar energy system, solar micro-grid power station
210 single crystal high-efficiency module
40V DC voltage stable output;
High conversion rate and high efficiency output;
Excellent low light effect;
Adoption of high quality tempered glass with high transmittance;
Unique technology to make the components beautiful and sturdy resistance to wind and snow, easy to install;
Unique technology to avoid freezing and deformation of water accumulated in the frame;
Can be specially designed and individually packaged according to customer requirements
25-year output power guarantee;
Radiance 1000W/m²
Component temperature 25°C
AM=1.5
SPECIFICATION
| Battery | Monocrystalline 210*35mm cell |
| Number and arrangement of cells | 350(35*10) |

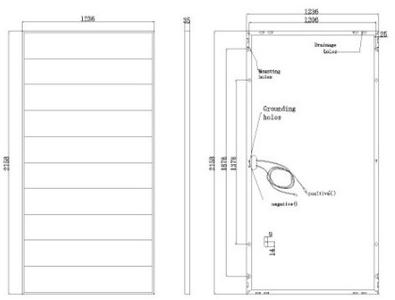

| Module Size | 2158*1236*35mm |
| Weight | 27.4kg |
| Maximum Power(Pmax) | 540W | 545W | 550W | 555W |
| Output Power Tolerance | +0~5W | |||
|
Best Working Current(Imp) Best Working Voltage(Vmp) |
13.774A 39.42V |
13.815A 39.450V |
13.942A 39.494V |
14.05A 39.502V |
| Open circuit voltage(Voc) | 48.08V | 48.08V | 48.077V | 48.081V |
| Short circuit current (Isc) | 14.543A | 14.657A | 14.672A | 14.690A |
|
Temperature coefficient of short-circuit current Open Circuit Voltage TCR |
(0.065±0.015)%/°C - (80±10)mV/°C |
|||
| Peak Power TCR | - (0.5±0.05)%/°C | |||
| NOCT | 47±2°C | |||
| Operating Temperature | -40℃ to85℃ | |||
| Maximum System Voltage | 1500VDC |
