Solar modules
72 high-efficiency polycrystalline modules Stable output of 36V DC voltage; High conversion rate and high efficiency output; Excellent weak light effect; Adopting high-quality tempered glass with high transmittance; The unique process makes the components beautiful, sturdy, and resistant to wind and snow, making installation convenient; Unique technology to prevent water accumulation, freezing, and deformation within the framework; Can be specially designed according to customer needs and packaged separately; 25 year output power guarantee;
Keywords: solar household system, solar energy system, solar micro-grid power station
72 high-efficiency polycrystalline modules
Stable output of 36V DC voltage;
High conversion rate and high efficiency output;
Excellent weak light effect;
Adopting high-quality tempered glass with high transmittance;
The unique process makes the components beautiful, sturdy, and resistant to wind and snow, making installation convenient;
Unique technology to prevent water accumulation, freezing, and deformation within the framework;
Can be specially designed according to customer needs and packaged separately;
25 year output power guarantee;
Radiance 1000W/m²
Component temperature 25°C
AM=1.5
SPECIFICATION
| Battery | Polycrystalline 156 * 156mm (158 * 158mm) |
| Number and arrangement of cells | 72(6×12) |

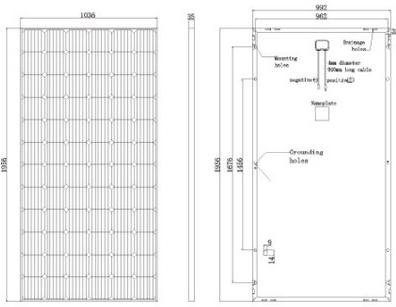

| Module Size | 1956mm×992mm×35mm |
| Weight | 20.6kg |
| Maximum Power(Pmax) | 315W | 320W | 325W | 330W | 335W | 340W | 345W | 350W | 355W | 360W |
| Output Power Tolerance | +0~5W | |||||||||
|
Best Working Current(Imp) Best Working Voltage(Vmp) |
8.29A 38.0V |
8.39A 38.16V |
8.50A 38.24V |
8.59A 38.42V |
8.69A 38.56V |
8.81A 38.60V |
8.93A 38.65V |
9.04A 38.70V |
9.15A 38.80V |
9.23A 39.0V |
| Open circuit voltage(Voc) | 47.12V | 47.20V | 47.30V | 47.35V | 47.40V | 47.42V | 47.48V | 47.60V | 47.80V | 48.0V |
| Short circuit current (Isc) | 8.38A | 8.51A | 8.64A | 8.78A | 8.91A | 9.04A | 9.18A | 9.31A | 9.44A | 9.57A |
|
Temperature coefficient of short-circuit current Open Circuit Voltage TCR |
(0.065±0.015)%/°C - (80±10)mV/°C |
|||||||||
| Peak Power TCR | - (0.5±0.05)%/°C | |||||||||
| NOCT | 47±2°C | |||||||||
| Operating Temperature | -40℃ to85℃ | |||||||||
| Maximum System Voltage | 1500VDC |
