Product
Solar modules
210 single crystal high-efficiency module Stable output of 45V DC voltage High conversion rate and high efficiency output; Excellent weak light effect; Adopting high-quality tempered glass with high transmittance; The unique process makes the components beautiful, sturdy, and resistant to wind and snow, making installation convenient; Unique technology to prevent water accumulation, freezing, and deformation within the framework; Can be specially designed according to customer needs and packaged separately; 25 year output power guarantee;
Keywords: solar household system, solar energy system, solar micro-grid power station
210 single crystal high-efficiency module
Stable output of 45V DC voltage
High conversion rate and high efficiency output;
Excellent weak light effect;
Adopting high-quality tempered glass with high transmittance;
The unique process makes the components beautiful, sturdy, and resistant to wind and snow, making installation convenient;
Unique technology to prevent water accumulation, freezing, and deformation within the framework;
Can be specially designed according to customer needs and packaged separately;
25 year output power guarantee;
Radiance 1000W/m²
Component temperature 25°C
AM=1.5
SPECIFICATION
| Battery | Single crystal 105 * 105mm battery cell |
| Number and arrangement of cells | 160 |

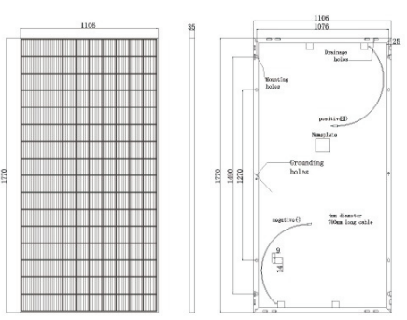

| Module Size | 1770mm×1106mm×35mm |
| Weight | 20.6kg |
| Maximum Power(Pmax) | 375W | 380W | 385W | |
| Output Power Tolerance | +0~5W | |||
|
Best Working Current(Imp) Best Working Voltage(Vmp) |
8.37A 44.80V |
8.47A 45V |
8.52A 45.2V |
8.60A 45.4V |
| Open circuit voltage(Voc) | 54.24V | 54.56V | 54.80V | 55.0V |
| Short circuit current (Isc) | 8.88A | 8.99A | 9.12A | 9.24A |
|
Temperature coefficient of short-circuit current Open Circuit Voltage TCR |
(0.065±0.015)%/°C - (80±10)mV/°C |
|||
| Peak Power TCR | - (0.5±0.05)%/°C | |||
| NOCT | 47±2°C | |||
| Operating Temperature | -40℃ to85℃ | |||
| Maximum System Voltage | 1500VDC |
