ZBT 430W-450W

Keywords: solar household system, solar energy system, solar micro-grid power station

Temperature Characteristics

Maximum Power Temperature Coefficient	-0.35 %/ C
Temperature Coefficient Of Open Circuit Voltage	-0.27 %/c
Temperature Confficient Of Short Circuit Current	+0.05 %/ C
Working Temperature	-40 ~ +85 °C
Nominal Operating Cell Temperature (NOCT)	45±2℃

Electrical Characteristics

Component Model	TD-430MB-144HC	TD-435MB-144HC	TD-440MB-144HC	TD-445MB-144HC	TD-450MB-144HC
Maximum Power(PMP)	STC 430	STC 435	STC 440	STC 445	STC 450
pen Circuit Voltage (VOC)	49.3	49.5	49.7	49.9	50.1
Short Circuit Current (ISC)	11.32	11.40	11.47	11.54	11.61
Maximum Power Voltage (VMP)	41.2	41.3	41.4	41.6	41.8
Maximum Power Current (IMP)	10.44	10.54	10.63	10.70	10.77
Component Efficency (n )	19.78	20.01	20.24	20.47	20.7
Power Tolerance	(0,+3%)
Maximum System Voltage	1500V
Maximum Rated Fuse Current	20A
STC: Irradiance 1000 W/ma module temperature 25 C AM=1.5

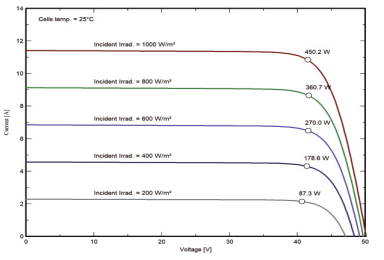

I-V Curve

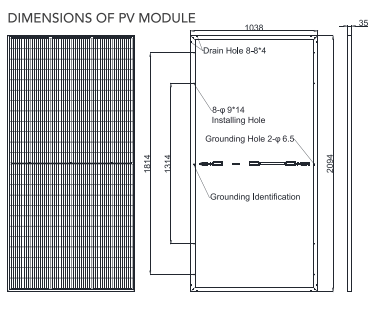

Structural Characteristics

Module Size	2094x1038x35mm
Weight	23.5kg
Cell	single crystal PERC 166x83mm(144pieces)
Glass	3.2mm tempered coated glass,low iron
Frame	anodized aluminmum alloy
Junction Box	IP68,3 diodes
Output Lead	4.Omm21200mm(+)1200mm(-) or customized
Mechanical Load	front 5400pa/back 2400pa

Packing Method

Module Size	2094x1038x35mm
Container	40' HQ
Quantity Per Pallet	31+2*
Number Of Pallets Per Container	22
Quantity Per Container	726
