Product
Inverter
● Pure sine wave output ● Low DC voltage, saving system cost ● Built-in PWM or MPPT charge controller; ● AC charge current O-45A adjustable; ● Wide LCD screen, clearly and precisely shows icon data; ● 100% imbalance loading design, 3 times peak power; ● Setting different working modes based on variable usage requirements; ● Various communication ports and Remote monitoring RS485/APP(WIFI/GPRS)(Optional).
Keywords: solar household system, solar energy system, solar micro-grid power station
Feature
● Pure sine wave output
● Low DC voltage, saving system cost
● Built-in PWM or MPPT charge controller;
● AC charge current O-45A adjustable;
● Wide LCD screen, clearly and precisely shows icon data;
● 100% imbalance loading design, 3 times peak power;
● Setting different working modes based on variable usage requirements;
● Various communication ports and Remote monitoring
RS485/APP(WIFI/GPRS)(Optional).
Application Area
● Medium IDC data exchange center machine room, medium scale network management system, billing center, bank/securities settlement center, industrial process control applications, traffic control areas etc.
● Provide stable, reliable and safe solutions for families, islands, ships and other small photovoltaic power systems

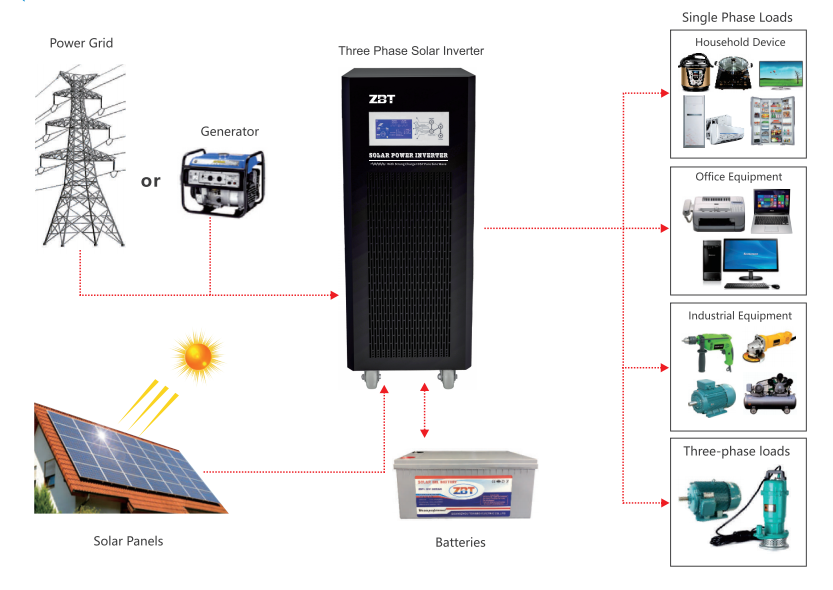

System Application Diagram

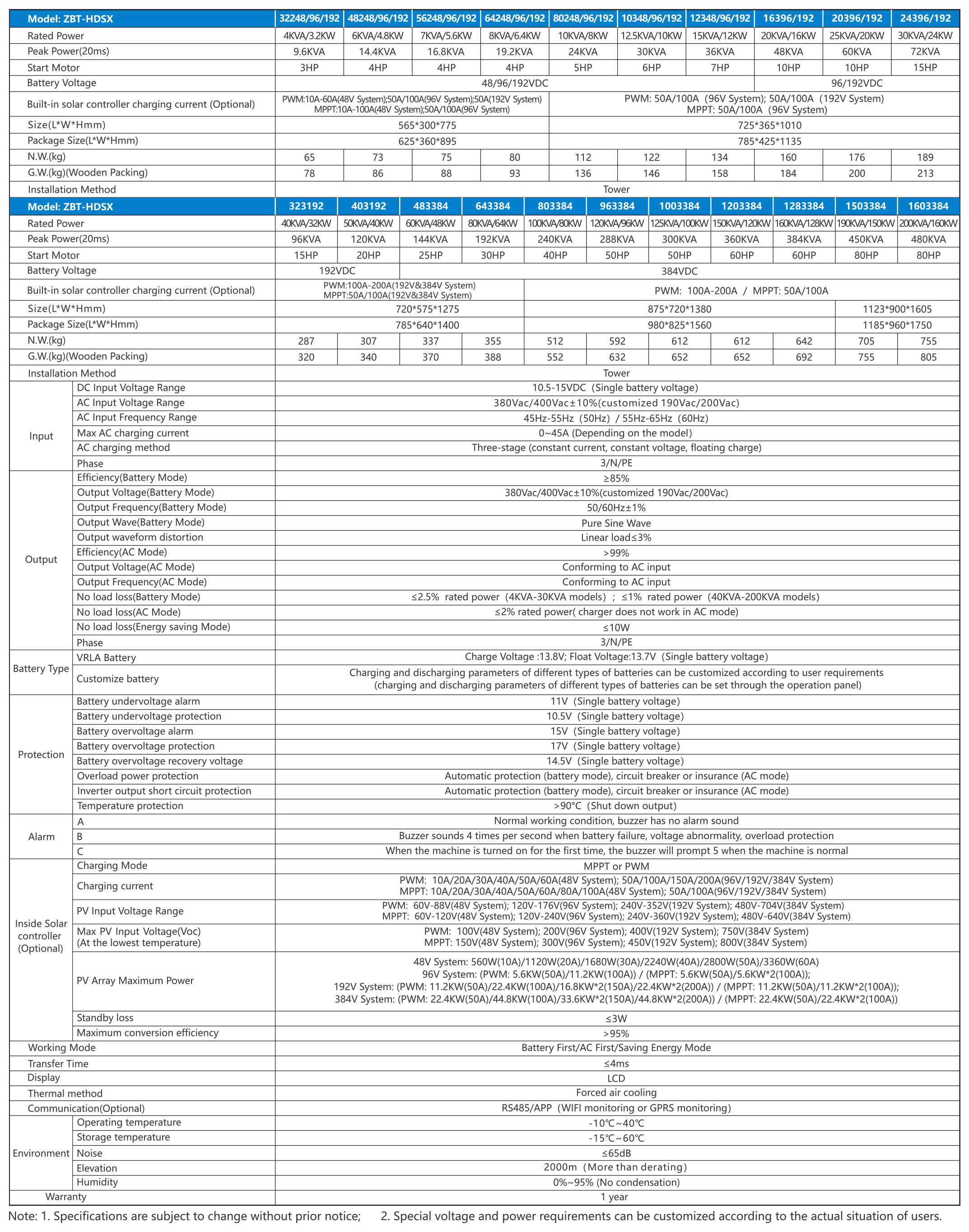

Technical Parameters
