Product
Inverter
ZBT-DP Inverter/Solar Inverter
Keywords: solar household system, solar energy system, solar micro-grid power station
Feature
● Pure sine wave output
● Low frequency toroidal transformer increase efficiency;
● Integrated LCD display; One-button start with an external display screen( optional);
● Dedicated DCP chip design; stable and high-speed operation;
● LCD display, easy to monitor the operation condition in real time;
● AC charge current 0-30A adjustable; battery capacity configuration more flexible;
● Three types working modes adjustable:AC first, DC first, energy-saving mode;
● AVR output, all-around automatic protection function;
● Frequency adaptive function, adapt to different grid environments;
● Built-in PWM or MPPT controller optional;
● Added fault codes query function,facilitate user to monitor the operation state in real time;
● Supports diesel or gasoline generator, adapt any tough electricity situation;
● RS485 communication port/APP optional.
Application Area
● Office and public facilities, household system, network transmission
equipment, manufacturing, control system, solar energy system, oil
field, drilling field operation, etc.
● Provide stable, reliable and safe solutions for families, islands, ships
and other small photovoltaic power systems

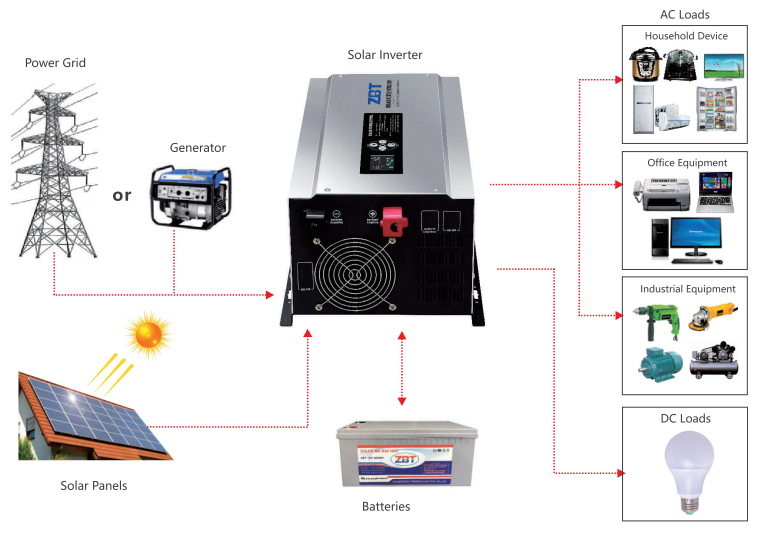

System Application Diagram

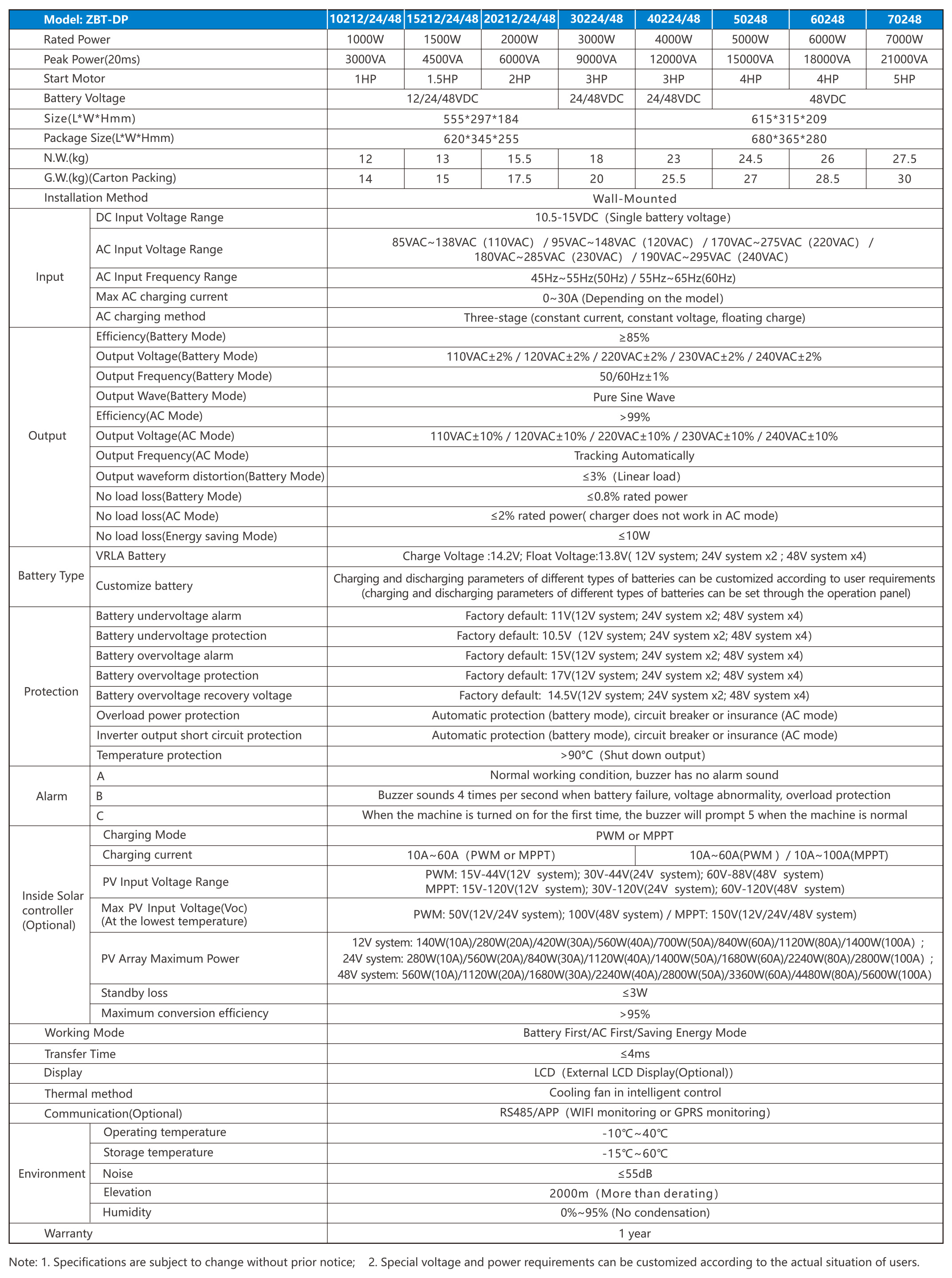

Technical Parameters
Product Message
