Product
Inverter
ZBT-HP Hybrid Inverter
Keywords: solar household system, solar energy system, solar micro-grid power station
Product Description
● High frequency design, high power density, small size, high efficiency,
low no-load loss.
● Built-in MPPT or PWM solar charge controller optional. Pure sine wave output, any types of loads adaptable.
● Battery charge and discharge voltage parameters adjustable, suitable for different types of batteries, can proiong the life of the battery and improve system performance.
● AC charge current 0~60A adjustable, battery capacity configuration more flexible.
● Three working modes adjustable: AC first, Battery first, PV first.
● Output voageeque adjustable funcio,adapt to different grid environment.
● Extra wide voltage and frequency input range, support mains or
● LED+LCD display, easy operation and data checking, can set each function and data directly;
● Multi-protection function(overload,over temperature, short circuit
protection and so on)
Application Area
● Office and public facilities, household system, network transmission equipment, manufacturing, control system, solar energy system, oil
field, drilling field operation, etc.
● Provide stable, reliable and safe solutions for families, islands, ships and other small photovoltaic power systems
System Application Diagram

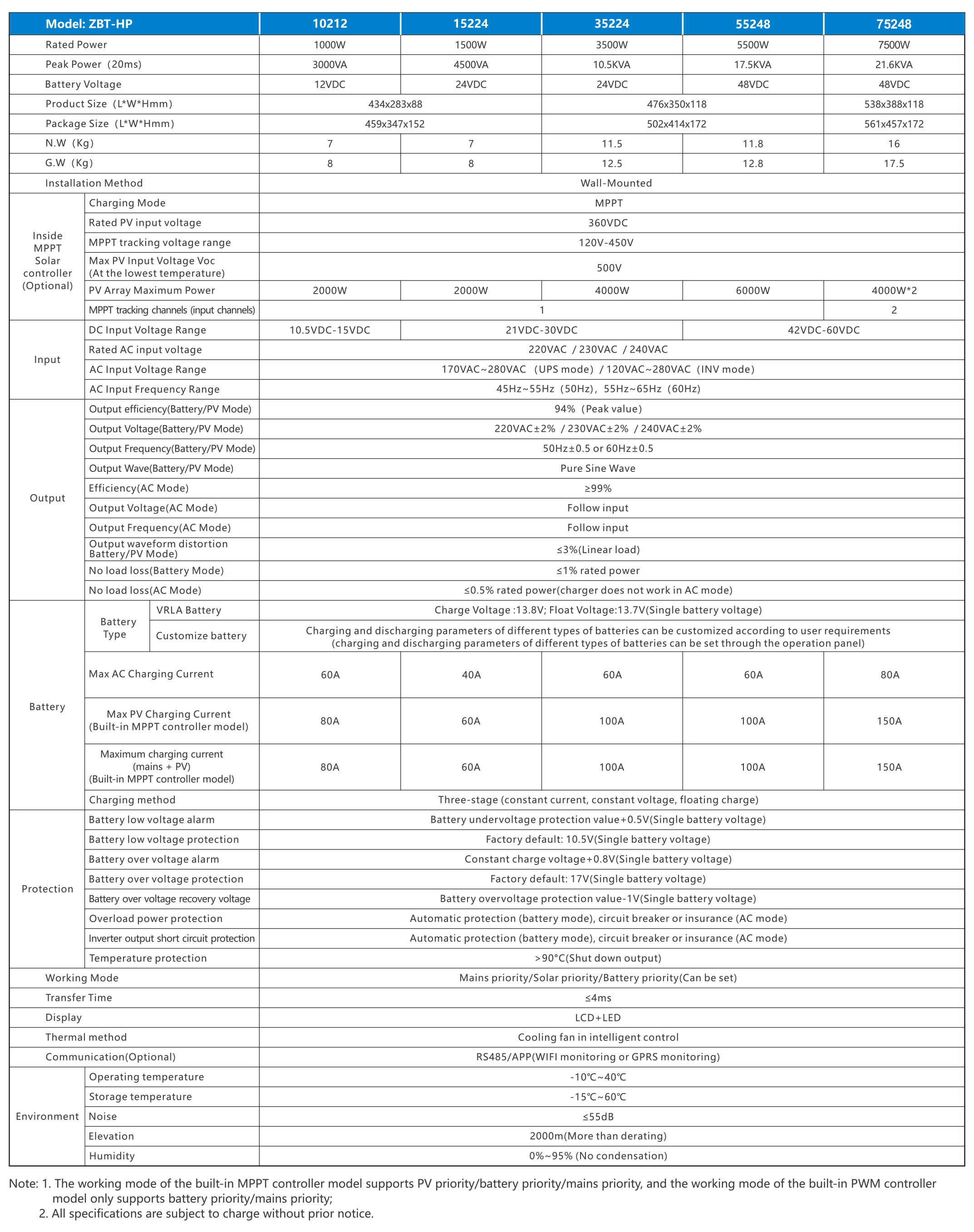

Technical Parameters
