Product
Inverter
ZBT-HP Pro-T Hybrid Inverter
Keywords: solar household system, solar energy system, solar micro-grid power station
Product Description
● Adopt high-frequengy design, high power density, small size, high efficiency and
low no-load loss;
● Builtin MPPT controller, integrated solar charging and mains complement design;
● Pure sine wave output, adaptable to any types of loads;
● Battery charge and discharge voltage parameters adjustable, suitable for different
types of batteries;
● AC charge current adjustable, battery capacity configuration more flexible;
● Three working modes adjustable: AC first, battery first, PV first;
● Output voltage/fequency adjustable function,adapt to different grid environment,
● Extra wide voltage and frequency input range, support mains or generator;
● LED+LCD display/easy operation and data checking,can set each function and data directly;
● Muli-protection function(overload,over temperature,short circuit protection and
so on)
● RS485 communication port/APP optional.

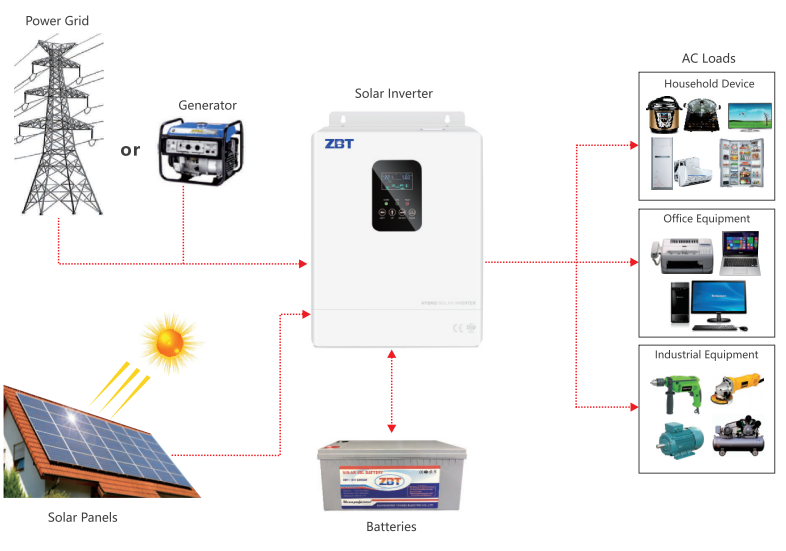

Application Area
● Office and public facilities, household system, network transmission equipment, manufacturing, control system, solar energy system, oil field, drilling field operation, etc.
● Provide stable, reliable and safe solutions for families, islands, ships and other small photovoltaic power systems

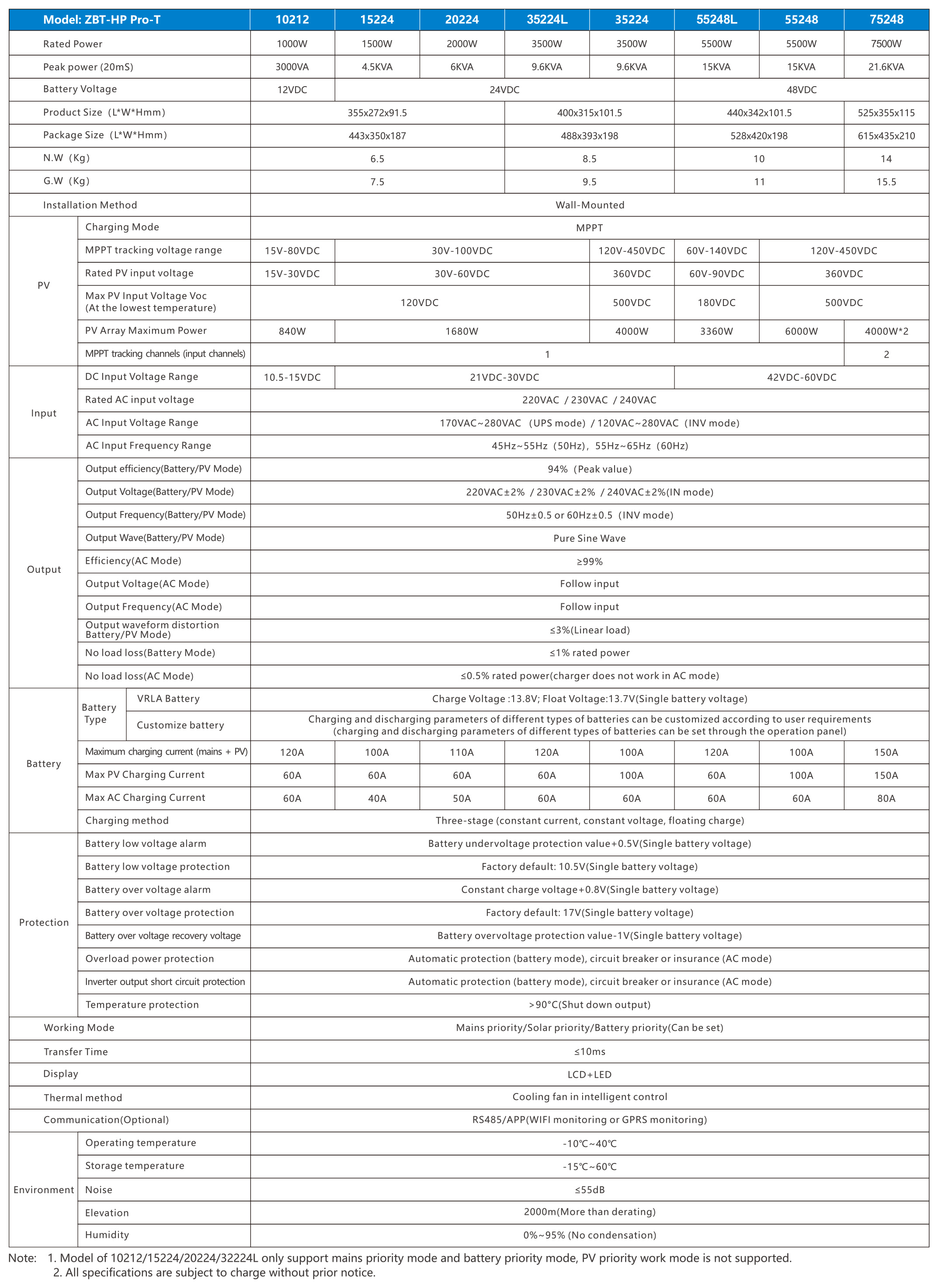

Technical Parameters
Product Message
