Inverter
Solar On/Off grid energy storage inverter applied to solar energy storage micro-grid system, The system uses PV energy as priority. When the energy of PV is not enough, it can be supplemented by city power or batteries.
Keywords: solar household system, solar energy system, solar micro-grid power station
Product Description
Solar On/Off grid energy storage inverter applied to solar energy storage micro-grid system, The system uses PV energy as priority. When the energy of PV is not enough, it can be supplemented by city power or batteries. When the PV energy is surplus, the battery is stored or accessed on the grid to maximize the utilization of PV power generation, so as to achieve the purpose of self-use and extra power consumption. In addition, according to different customer's requirements, peak and valley time periods can be set up to achieve peak-to-peak and valley- filing, reduce grid pressure, and maximize revenue. The system can compatible with lead-acid batteries and lithium batteries. In the event of a power grid failure, solar energy can continue to generate electricity and switch to off-grid mode to continue to supply power to the load.
Feature
● Integrated inteligent energy management system, a variety
of modes can be set;
● Cut peaks and fill valleys to reduce grid pressure and maximize profits;
● Dual MPPT input, precise algorithm, eficient use of PV energy;
● 3-stage/2-stage charging technology to protect battery life;
● Two-way energy storage design, PV, mains can charge the battery;
● Support RS485 communication port/APP(Optional).

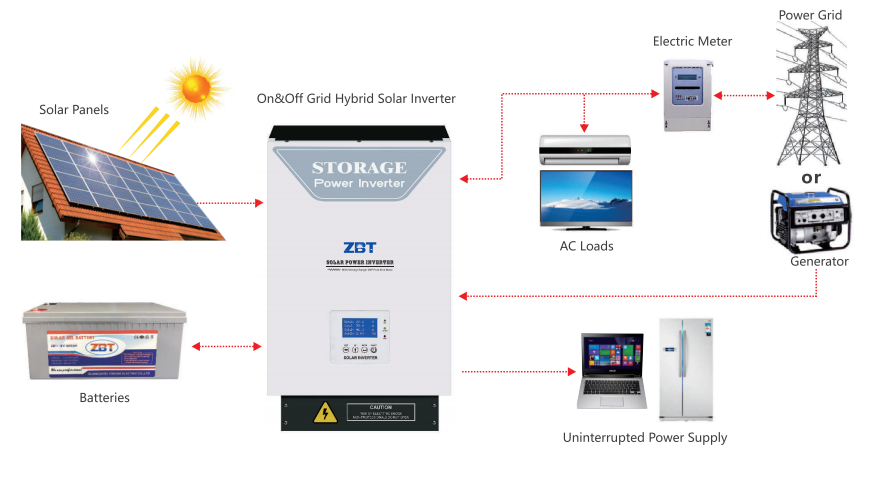

System Application Diagram

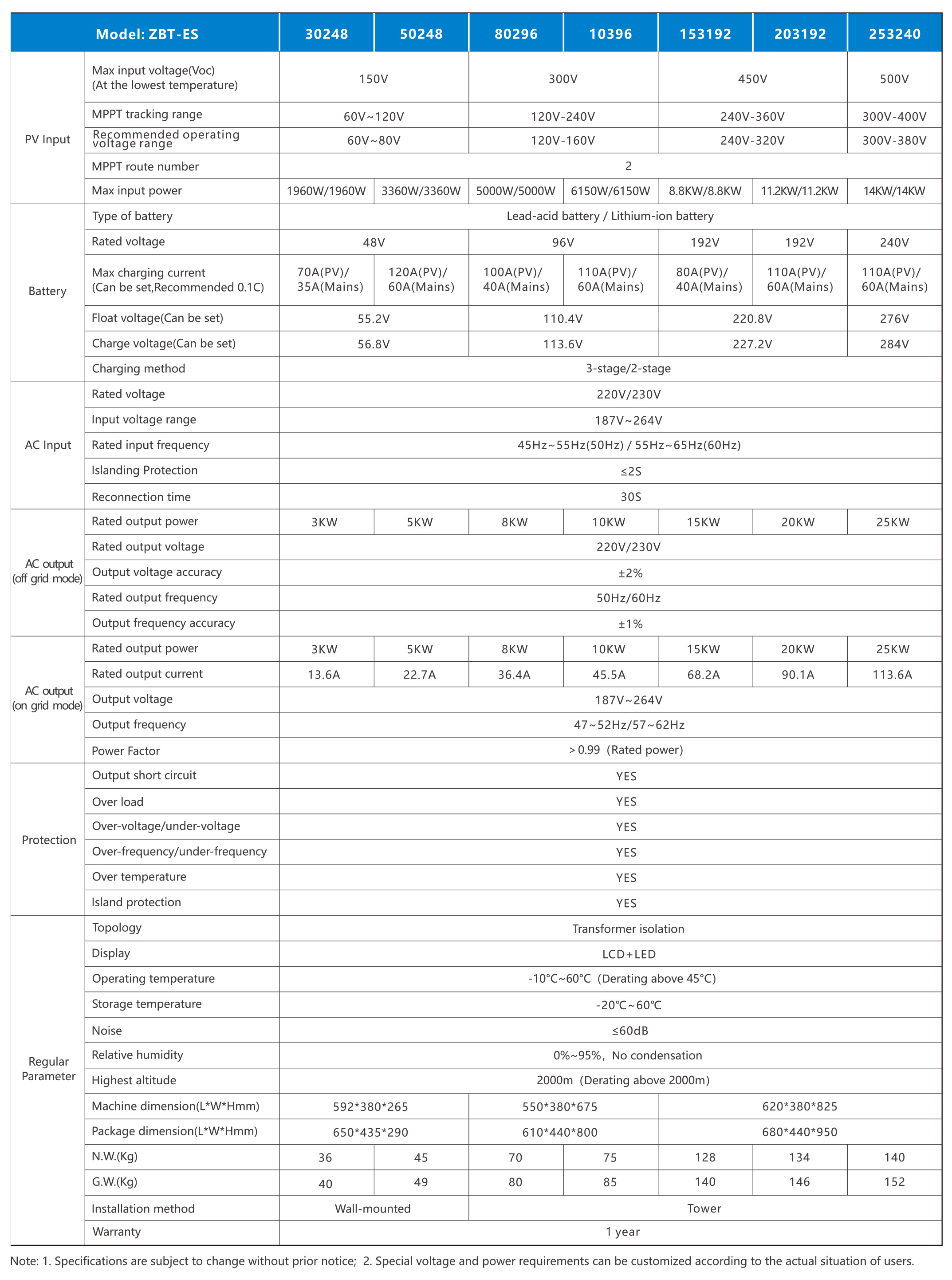

Technical Parameters
