ZBT-MPPT Solar Charge Controller
Advanced MPPT tracking, 99% tracking efficiency. Compared with PWM, the generating efficiency increase near 20%;
Keywords: solar household system, solar energy system, solar micro-grid power station
Feature
● Advanced MPPT tracking, 99% tracking efficiency. Compared with PWM, the generating efficiency increase near 20%;
● LCD display PV data and chart simulates power generation process;
● Wide PV input voltage range, convenient for system configuration;
● Intelligent battery management function, extend battery life;
● RS485 communication port optional.

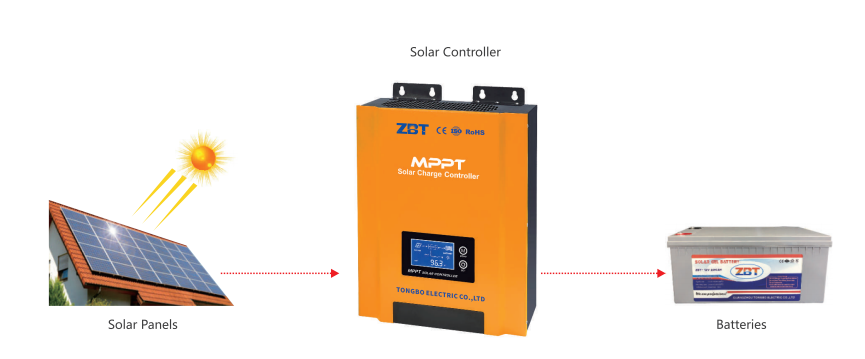

System Application Diagram

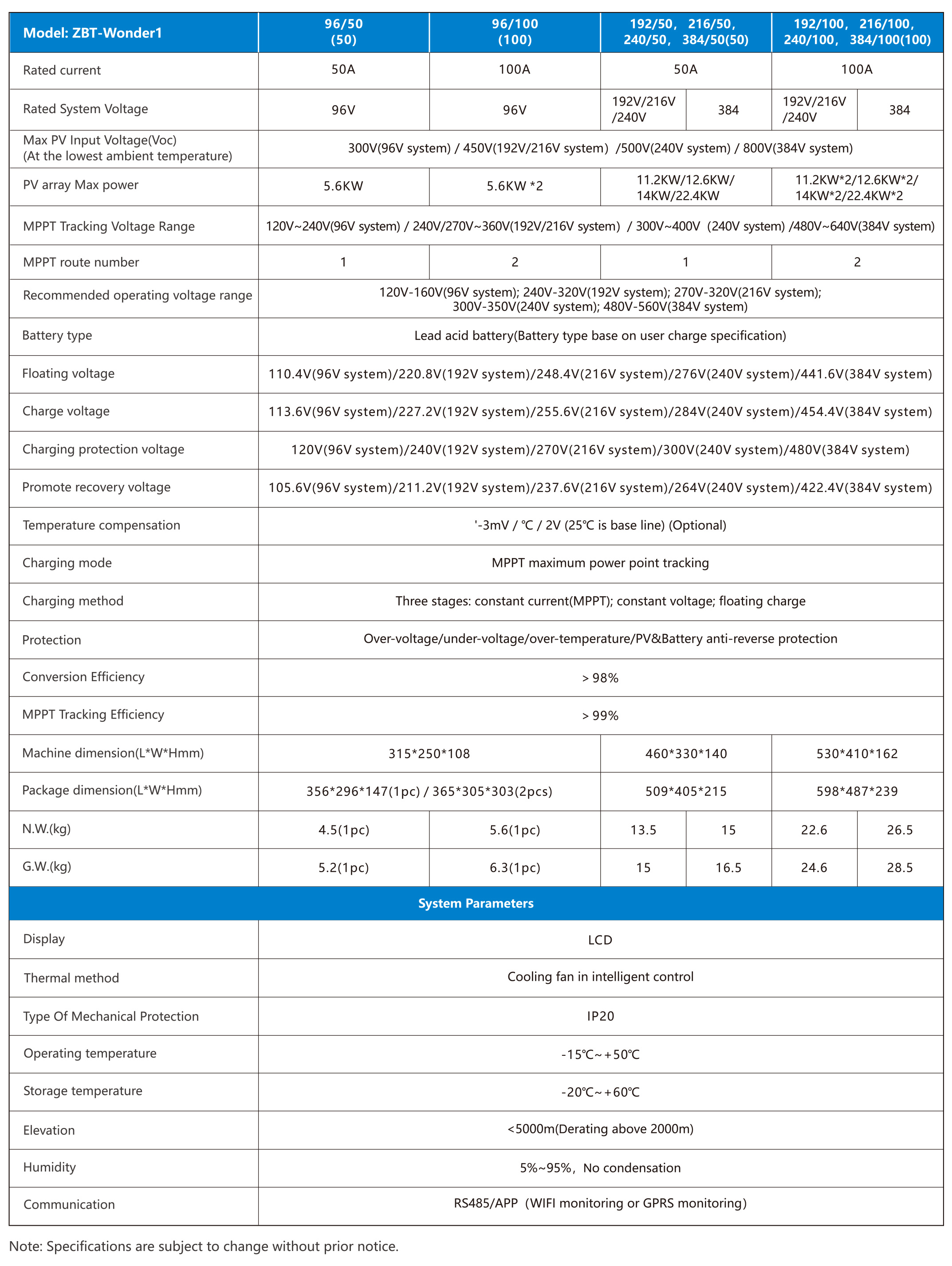

Technical Parameters
