ZBT-W

Office and public facilities, household system, networktransmission equipment, manufacturing, control system,solar energy system, oil field, drilling field operation, etc.。 Provide stable, reliable and safe solutions for families, islands,ships and other small photovoltaic power systems

Keywords: solar household system, solar energy system, solar micro-grid power station

Product Message

Feature

Pure sine wave output;

High eficiency toroidal transformer lower loss;

Intelligent LCD integration display;

AC charge current O-20A adjustable; battery capacityconfiguration more flexible;

Three types working modes adjustable:AC first, DC first,energy-saving mode;

Frequency adaptive function, adapt to different grid environments;

Built-in PWM or MPPT controller optional;

Added fault code query function,facilitate user to monitor theoperation state in real time;

Supports diesel or gasoline generator, adapt any toughelectricity situation;

RS485 communication port/APP optional.

Application Area

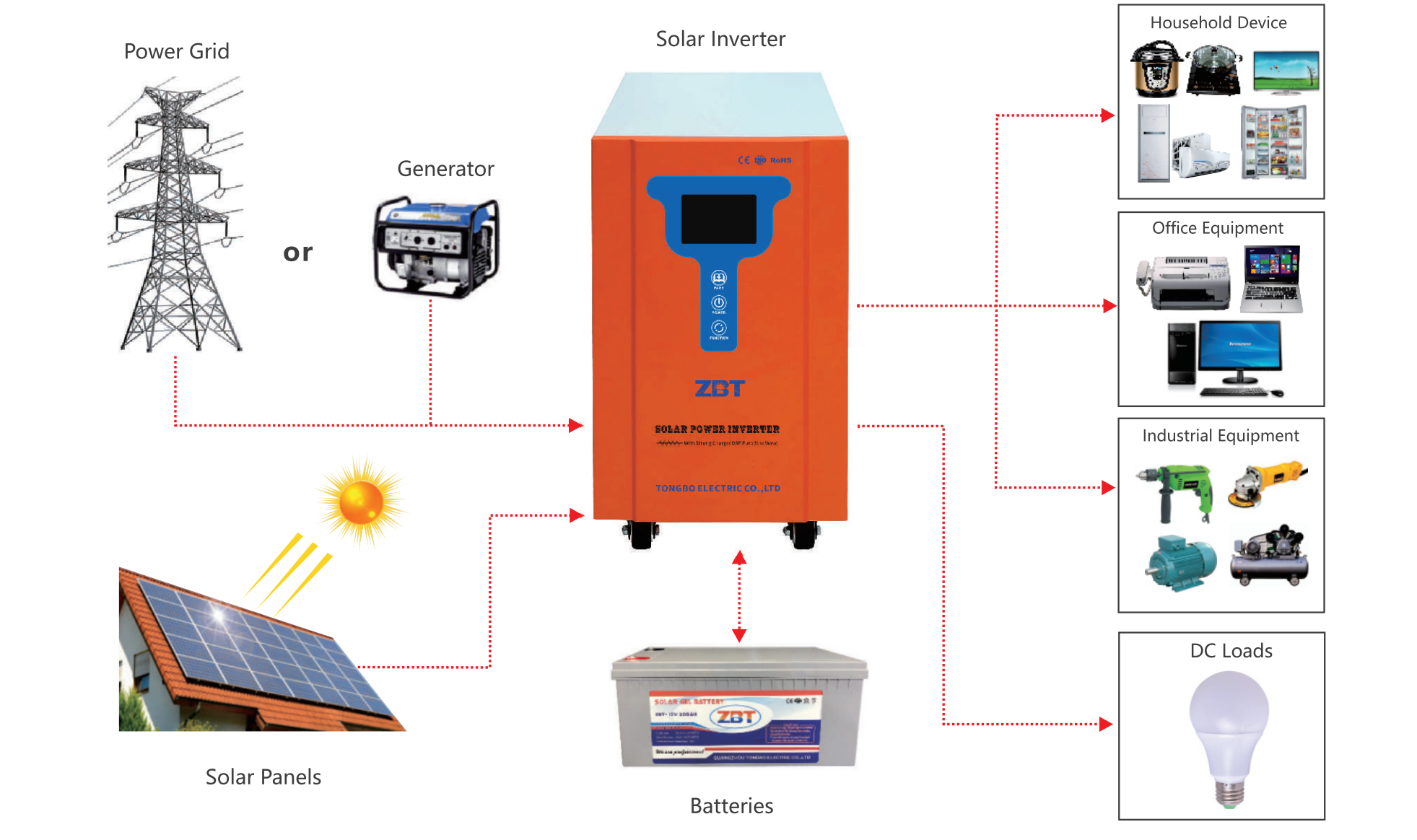

System Application Diagram

Technical Parameters

Model: ZBT-W

70112/24
(701)

10212/24
(102)

15224/48
(152)

20224/48
(202)

30224/48
(302)

35248/96
(352)

40248/96
(402)

50248/96
(502)

60248/96
(602)

70248/96/192
(702)

Rated Power

700W

1000W

1500W

2000W

3000W

3500W

4000W

5000W

6000W

7000W

Peak Power(20ms)

2100VA

3000VA

4500VA

6000VA

9000VA

10500VA

12000VA

15000VA

18000VA

21000VA

Start Motor

0.5HP

1HP

1.5HP

2HP

3HP

4HP

5HP

Battery Voltage

12/24VDC

24/48VDC

48/96VDC

48/96/192VDC

Max AC charging current

0A~20A(Depending on the model, The maximum charging power is 1/4 of the rated power)

Built-in solar controller charging current (optional)

10A~60A(PWM or MPPT)

24/48V(PWM:10A~60A/MPPT:10A-100A)

48V(PWM:10A~120A/MPPT:10A~100A)/
96V(50A/100A(PWM or MPPT))

Size(L*W*Hmm)

340x165x283

410x200x350

491x260x490

Packing Size(L*W*Hmm)

405x230x340(1pc)/475x415x350(2pc)

475x265x410

545x315x550

N.W. (kg)

9.5(1pc)

10.5(1pc)

11.5(1pc)

20.5

21.5

31.5 36

G.W. (kg)(Carton packaging)

11(1pc)

12(1pc)

13(1pc)

22.5

23.5

34.5 39

Installation Method

Tower

Model: ZBT-W

80248/96/192
(802)

10348/96/192
1103

12396/192
(123)

153192
(153)

203192
(203)

253240
(253)

303240
(303)

403384
(403)

Rated Power

8KW

10KW

12KW

15KW

20KW

25KW

30KW

40KW

Peak Power(20ms)

24KVA

30KVA

36KVA

45KVA

60KVA

75KVA

90KVA

120KVA

Start Motor

5HP

7HP

10HP

12HP

15HP

20HP

Battery Voltage

48/96/192VDC

48/96V/192VDC

96/192VDC

192VDC

240VDC

384VDC

Max AC charging current

0A~40A (Depending on the model, The
maximum charging power is 1/4 of the rated power)

0A~20A(Depending on the model, The maximum charging power is 1/4 of the rated power)

Built-in solar controller
charging current (optional)

PWM:(48V:120A; 96V:50A/100A; 192V/384V:50A)
MPPT:(48V:100A/200A; 96V:50A/100A; 192V/384V:50A)

50A/100A

Size(L*W*Hmm)

540x350x695

593x370x820

721x400x1002

Packing Size(L*W*Hmm)

600*410*810

656*420*937

775x465x1120

N.W. (kg)

110

116

123

167

192

G.W. (kg)(Wooden packing)

124

130

137

190

215

Installation Method

Tower

Input

DC Input Voltage Range

10.5-15VDC(Single battery voltage)

AC Input Voltage Range

73VAC~138VAC(110VAC)/83VAC~148VAC(120VAC)/145VAC~275VAC(220VAC)/155VAC~285VAC(230VAC)/165VAC~295VAC(240VAC)(700W~7000W)
92VAC~128VAC(110VAC)/102VAC~138VAC(120VAC)/185VAC~255VAC(220VAC)/195VAC~265VAC(230VAC)/205VAC~275VAC(240VAC)(8KW~40KW)

AC Input Frequency Range

45Hz~55Hz(50Hz)/55Hz~65Hz(60Hz)

AC charging method

Three-stage (constant current, constant voltage, floating charge)

Output

Efficiency(Battery Mode)

≥85%

Output Voltage(Battery Mode)

110VAC±2%/120VAC±2%/220VAC±2%/230VAC±2%/240VAC±2%

Output Frequency(Battery Mode)

50Hz±0.5 or 60Hz±0.5

Output Wave(Battery Mode)

Pure Sine Wave

Efficiency(AC Mode)

≥99%

Output Voltage(AC Mode)

Follow input

Output Frequency(AC Mode)

Tracking Automatically

Output waveform distortion(Battery Mode)

≤3%(Linear load)

No load loss(Battery Mode)

<1% rated power

No load loss(AC Mode)

≤2% rated power (charger does not work in AC mode))

No load loss(Energy saving Mode)

≤10W

Battery Type
(selectable)

VRLA Battery

Charge Voltage :14.2V; Float Voltage:13.8V(Single battery voltage)

Customize battery

Charging and discharging parameters of different types of batteries can be customized according to user requirements
(charging and discharging parameters of different types of batteries can be set through the operation panel)

Protection

Battery undervoltage alarm

Factory default: 11V(Single battery voltage)

Battery undervoltage protection

Factory default: 10.5V(Single battery voltage)

Battery overvoltage alarm

Factory default: 15V(Single battery voltage)

Battery overvoltage protection

Factory default: 17V(Single battery voltage)

Battery overvoltage recovery voltage

Factory default: 14.5V(Single battery voltage)

Overload power protection

Automatic protection (battery mode), circuit breaker or insurance (AC mode)

Inverter output short circuit protection

Automatic protection (battery mode), circuit breaker or insurance (AC mode)

Temperature protection

>90°℃(Shut down output)

Alarm

Normal working condition, buzzer has no alarm sound

Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection

When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal

Inside Solar
controller
(Optional)

Charging Mode

PWM or MPPT

PV Input Voltage Range

PWM:15V-44V(12V system); 30V-44V(24V system); 60V-88V(48V system);120V-176V(96V system); 240V-352V(192V system); 300V-400V(240V system); 480V-704V(384V system)
MPPT:15V-120V(12V system);30V-120V(24V system);60V-120V(48V system);120V-240V(96V system);240V-360V(192V system);300V-400V(240V system);480V-640V(384V system)

Max PV Input Voltage(Voc)
(At the lowest temperature)

PWM: 50V(12V/24V system); 100V(48V system); 200V(96V system); 400V(192V system); 500V(240V system);750V(384V system)
MPPT:150V(12V/24V/48V system); 300V(96V system); 450V(192V system); 500V(240V system);800V(384V system)

PV Array Maximum Power

                        12V system: 140W(10A)/280W(20A)/420W(30A)/560W(40A)/700W(50A)/840W(60A)/1120W(80A)/1400W(100A);
                      24V system: 280W(10A)/560W(20A)/840W(30A)/1120W(40A)/1400W(50A)/1680W(60A)/2240W(80A)/2800W(100A);
48V system: 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A)/4480W(80A)/5600W(100A)/6720W(PWM 120A)/5.6KW&11.2KW(MPPT 100A/200A);
               96V system: 5.6KW(50A)/11.2KW(100A); 192V system:(PWM:11.2KW(50A)/224KW(100A)/(MPPT:11.2KW(50A)/11.2*2KW(100A);

240V system:(PWM:14KW(50A)/28KW(100A)/(MPPT:14KW(50A)/14*2KW(100A); 384V system:(PWM:224KW(50A)/44.8KW(100A)/(MPPT224KW(50A)/22.4*2KW(100A))

Standby loss

≤3W

Maximum conversion efficiency

>95%

Working Mode

Battery First/AC First/Saving Energy Mode

Transfer Time

≤4ms

Display

LCD

Thermal method

Cooling fan in intelligent control

Communication(Optional)

RS485/APP(WIFI monitoring or GPRS monitoring)

Environment

Operating temperature

-10℃~40℃

Storage temperature

-15℃~60℃

Noise

≤55dB

Elevation

2000m(More than derating)

Humidity

0%~95% No condensation

Warranty

1 year

Note: 1. Specifications are subject to change without prior notice; 2.Special voltage and power requirements can be customized according to the actual situati
